Bond Bridge RF Control - Fans
Ceiling fan and generic RF device control
Control up to 16 ceiling fans and 8 generic devices through Bond Bridge. Network scanning, dynamic device selection, real-time feedback, custom RF command recording.
Control ceiling fans and generic RF devices through Bond Bridge directly from Q-SYS. The plugin turns non-smart RF-controlled equipment into fully integrated devices by recording their RF commands and replaying them on demand, all without requiring a cloud connection.
If you need shade, fireplace, or Somfy device control, see the Bond Bridge RF Control - Shades plugin instead.

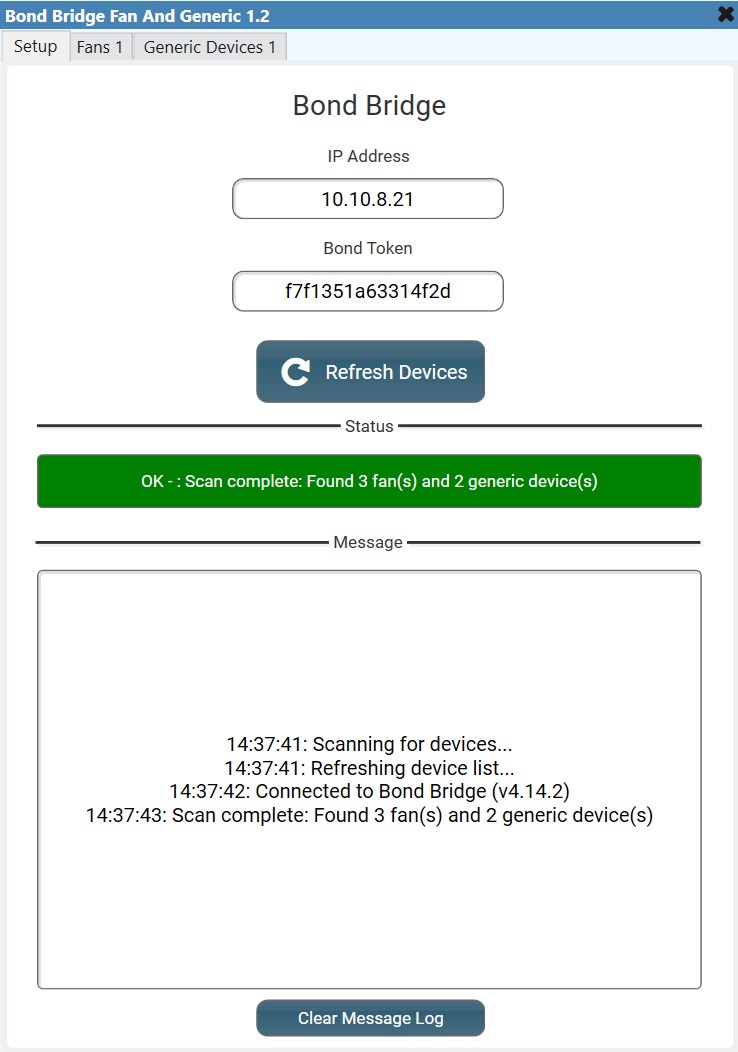

Network scanning handles device discovery automatically, eliminating the need to manually enter device IDs. Once your Bond Bridge is found, dropdown menus let you select and configure devices quickly. The plugin operates entirely on your local network, communicating directly with the Bond Bridge hardware.
Core Capabilities
- Control up to 16 ceiling fans and 8 generic devices per plugin instance
- Network scanning for automatic Bond device discovery, speeding up deployment
- Dynamic device selection via dropdown menus
- Real-time state feedback and monitoring
- Custom RF remote command recording for any compatible device
- Customisable device configuration for fan speeds and direction
- Comprehensive connection management with visual status indicators

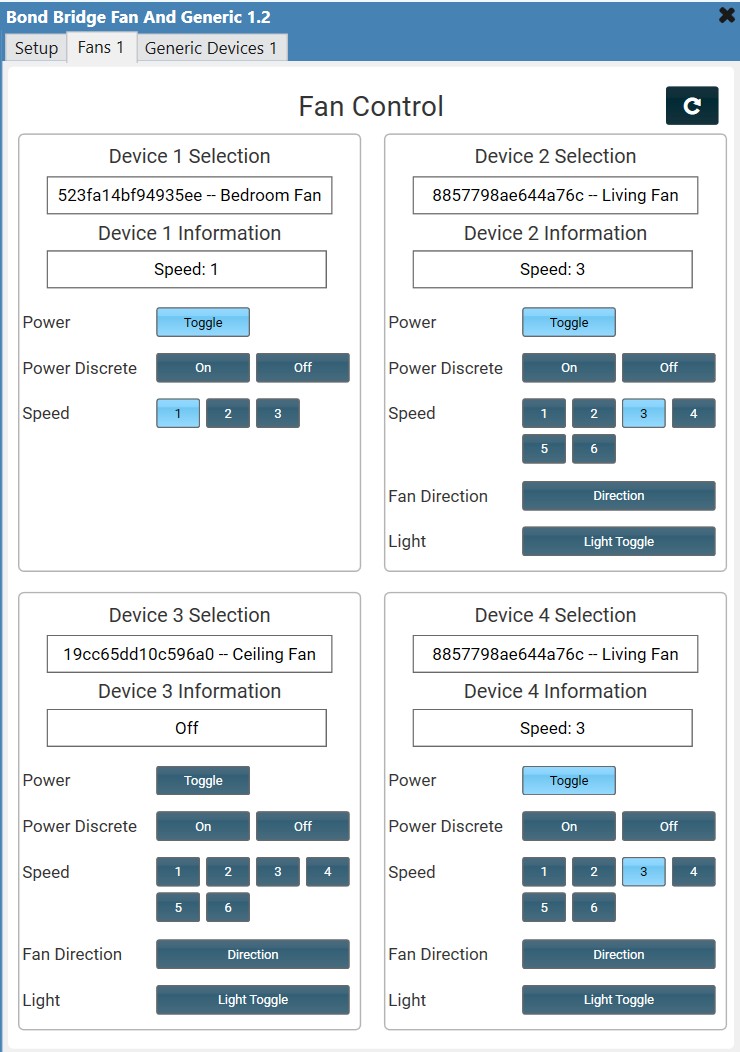

Fan Control
- Power on/off
- Variable speed selection (1-8 levels)
- Directional control (summer/winter modes)
- Integrated lighting control

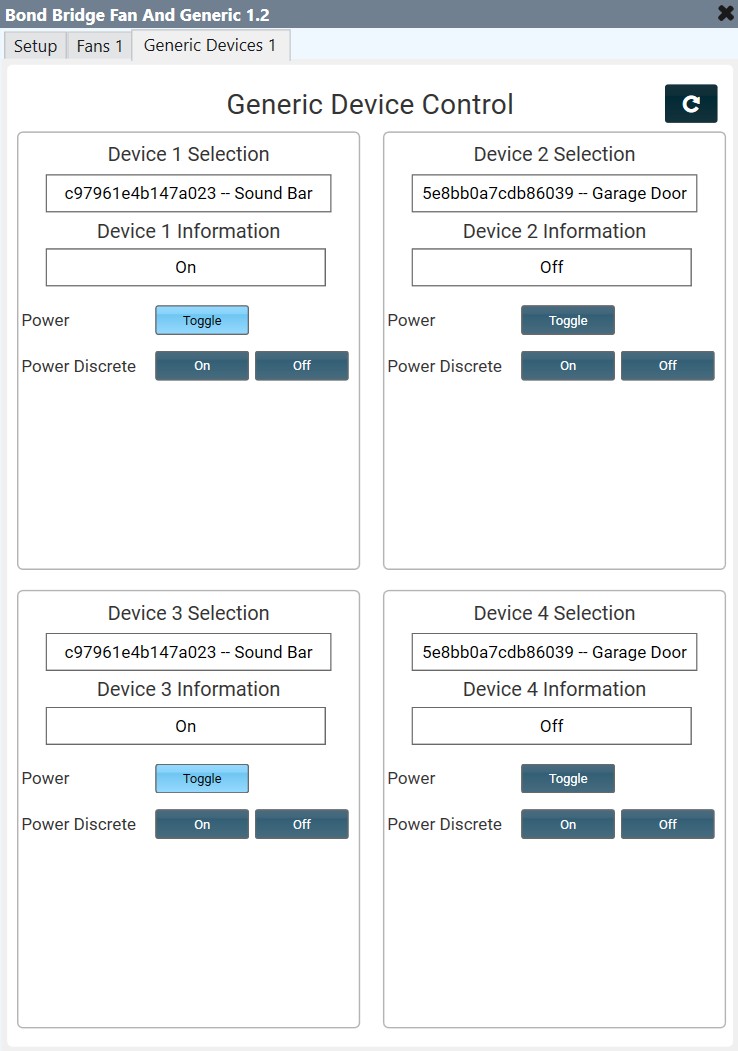

Generic Device Control
Power management for any RF-compatible device. Record the RF commands from an existing remote, and the plugin handles the rest.
Technical Details
- Local device control with no cloud connection required
- Token-based authentication management
- Optimised polling strategy balancing responsiveness with network load
- Modular component architecture following Q-SYS best practices
Included Extras
Your download includes the Bond Token Helper tool, a utility plugin that discovers and retrieves the authentication token from your Bond Bridge hardware. Saves you from having to dig through the Bond app to find it.
Licensing
Single license key required per core. Once licensed, you can use the plugin as many times as you like in your design.
Version History
- v1.5: Support for up to 16 ceiling fan control sets
- v1.3: Connection optimisation, device command improvements, general debugging
- v1.2: Initial release
