Crestron NVX

Video-over-IP control and integration

Comprehensive management of Crestron DM NVX video-over-IP devices within Q-SYS. Stream routing, automatic discovery, RS-232/IR/CEC display control. Verified with 40+ devices.

Comprehensive control of Crestron DM NVX video-over-IP devices directly from Q-SYS. This lightweight plugin enables AV integrators to manage video routing and control downstream displays through a unified interface without requiring additional control processors.

The plugin supports automatic discovery of available encoders on the network, or manual stream entry if preferred. Display control is handled through RS-232, IR, or CEC, all with user-configurable parameters and support for both ASCII and HEX command formats.

Core Capabilities

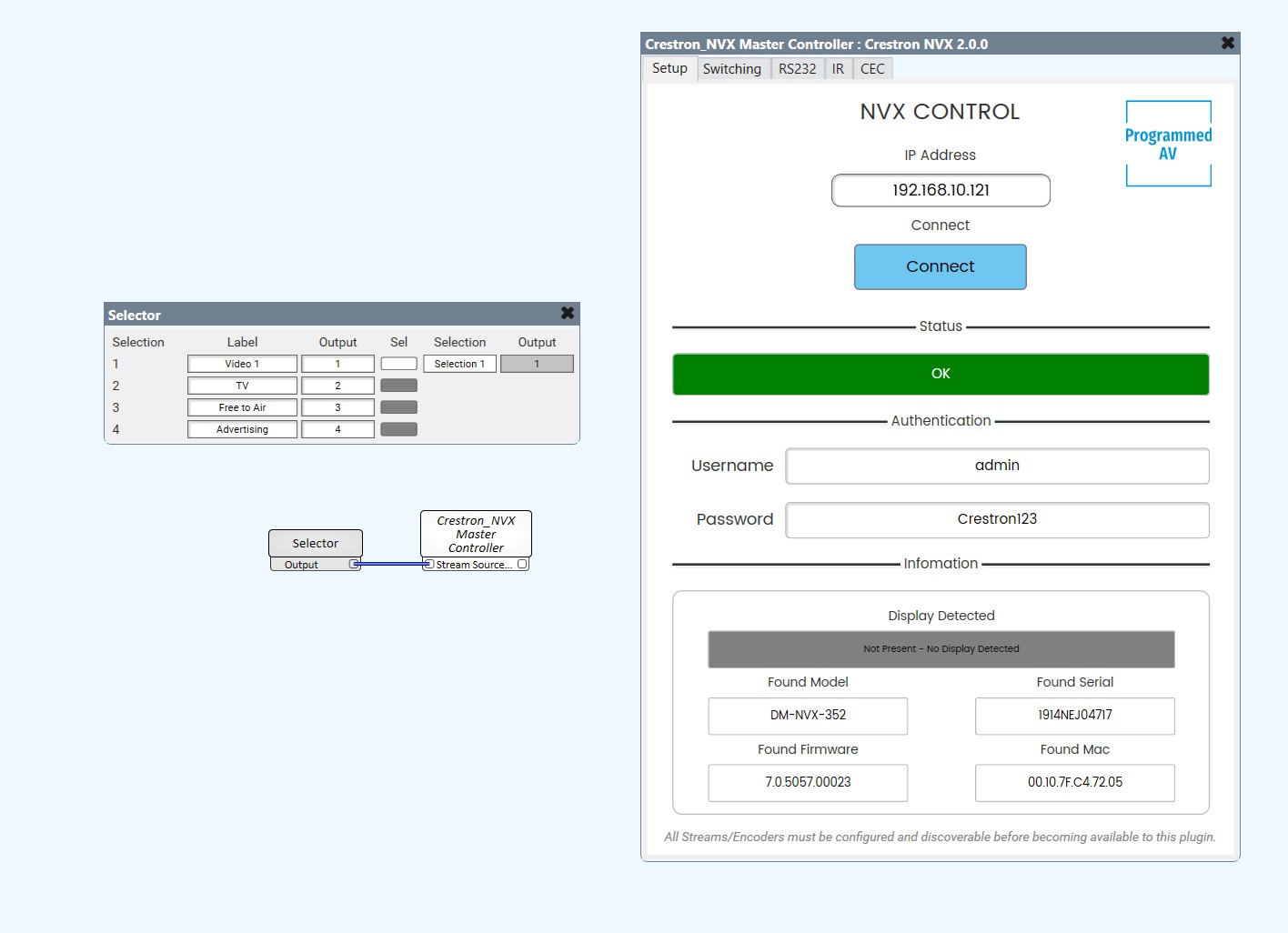

Video Stream Routing: Switch between available sources using a variety of methods and control pins
Automatic Stream Discovery: Intelligent discovery of available encoders on the network with resolution readout
Display Control: RS-232, IR, and CEC command transmission to connected displays, all accepting custom user-configurable parameters
Connection Monitoring: Real-time display detection, device status, and feedback
Multi-Format Commands: Support for ASCII and HEX command formats

Plugin Features

Dual discovery modes (auto-discovery or manual stream entry)
Flexible control selection (RS-232, IR, or CEC)

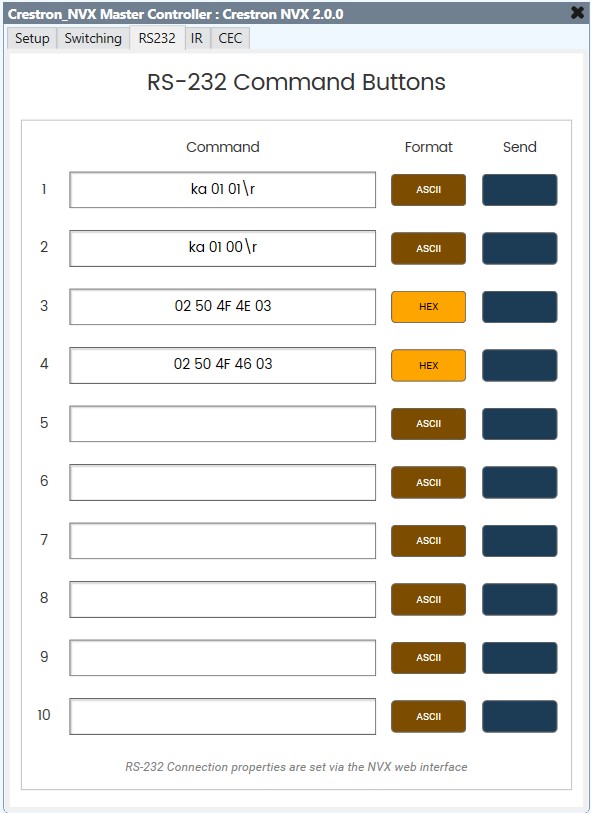

RS-232 command slots with pre-configured display commands and ASCII/HEX format toggle

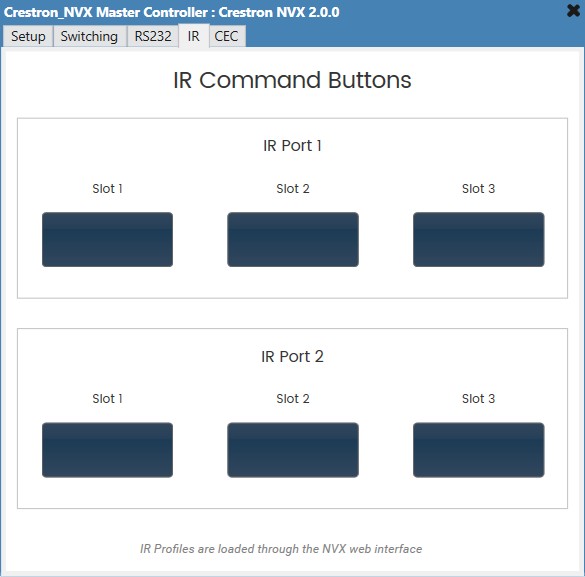

6 IR command slots across two independent IR ports with three command slots each

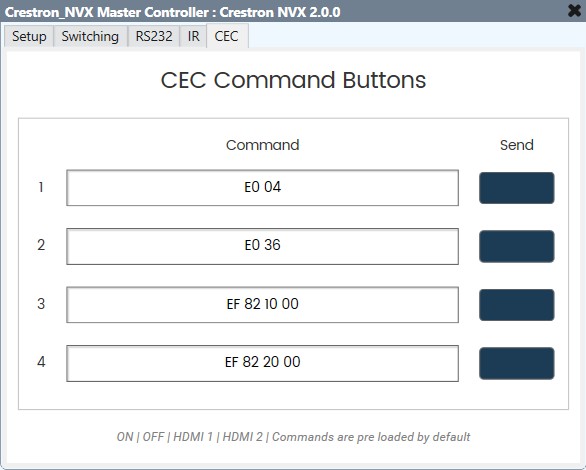

CEC command slots with direct HDMI-CEC control and common commands pre-loaded

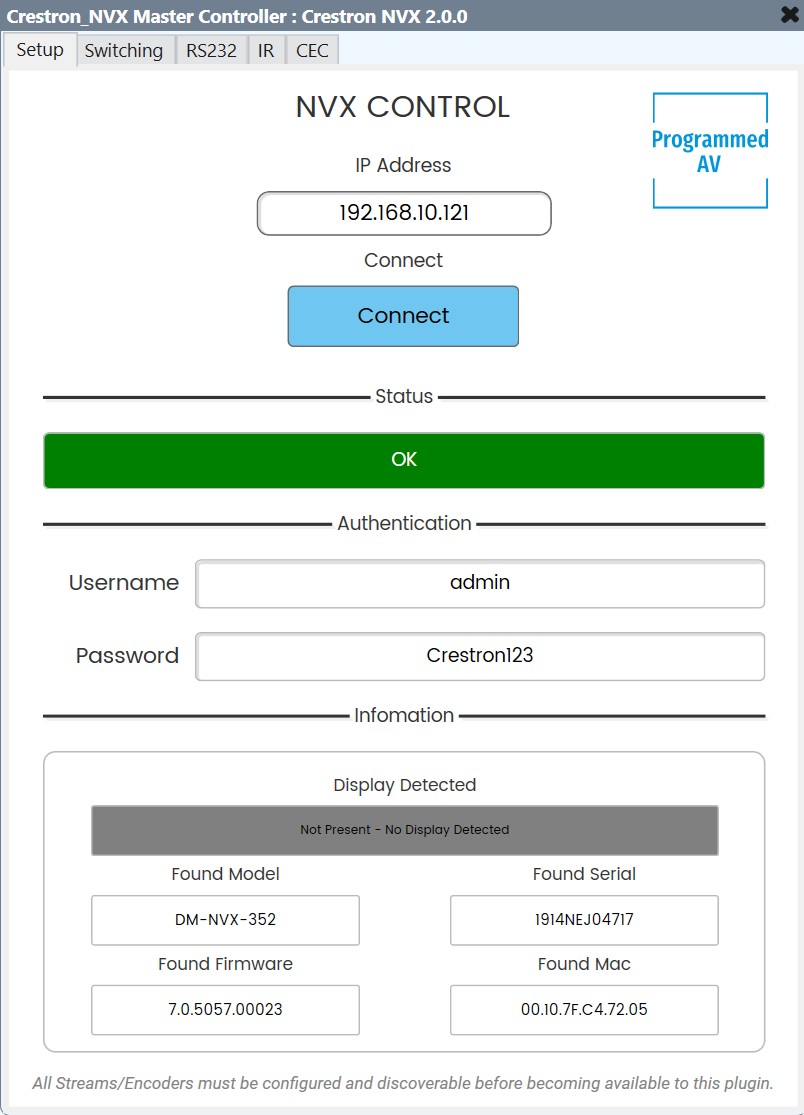

Device information display (model, serial, MAC, connection state)

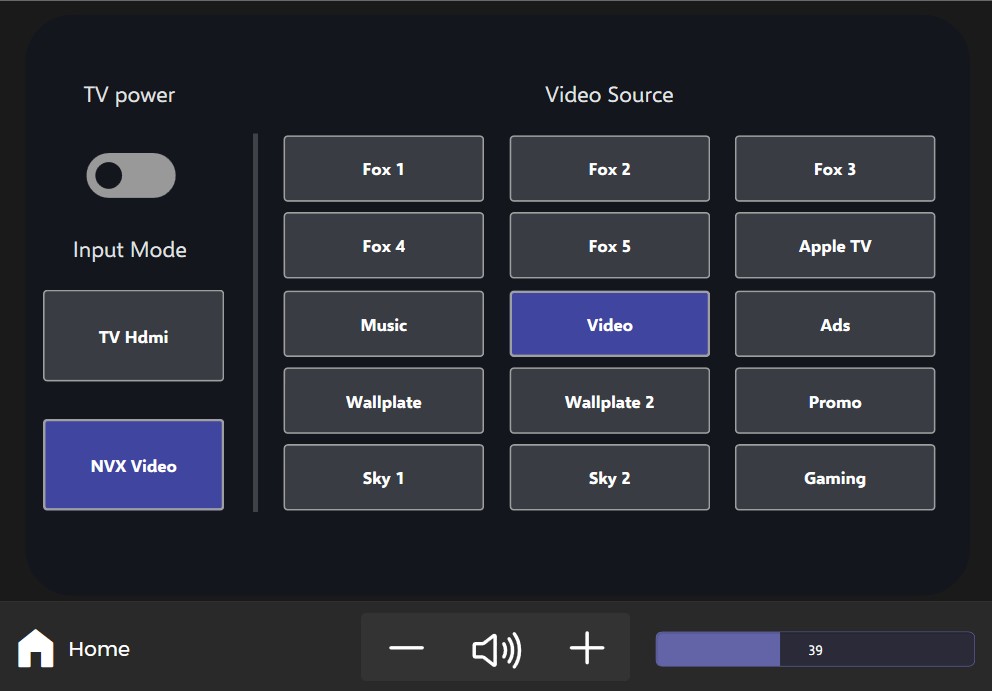

Visual routing feedback
